| اسم العلامة التجارية: | GCL |
| رقم النموذج: | gstar-ii p1.5 p1.95 p2.6 p2.9 p3.91 |
| مو: | دقيقة. الترتيب: 20 |
| السعر: | Price to be discussed |
| تفاصيل التغليف: | حالة خشبية |
| شروط الدفع: | L/C ، D/A ، D/P ، T/T. |

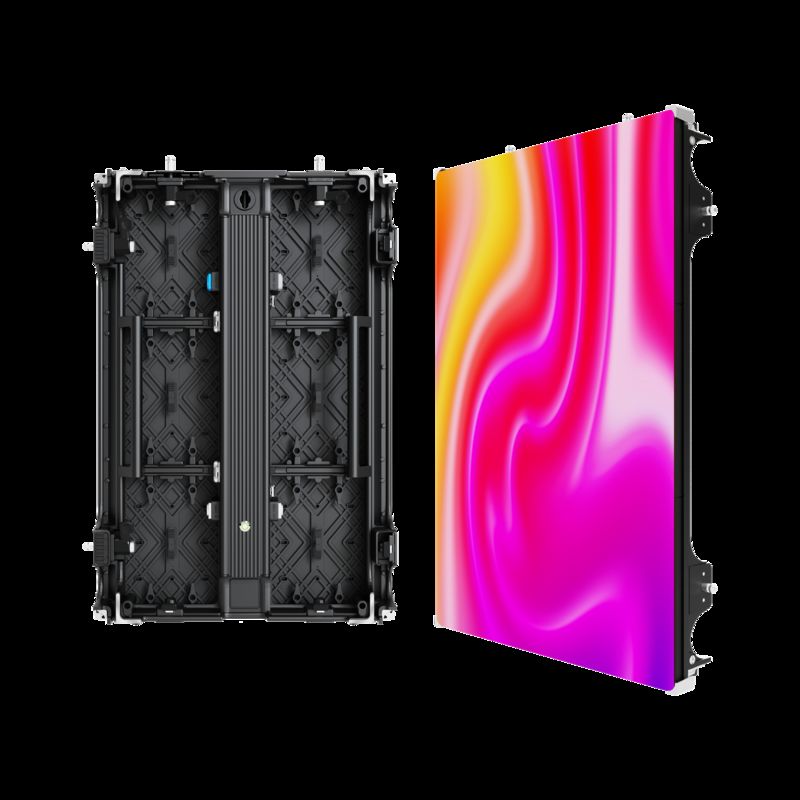

Gstar-II Series – Ultra-Slim, Smart, and Versatile LED Display
The Gstar-II Series is designed to deliver stunning visuals with exceptional flexibility.
Featuring cabinet sizes of 500×750mm and 500×1000mm, it adapts to a wide range of applications while maintaining a sleek, ultrathin profile of just 78mm.
Key Features & Benefits:
Flexible Cabinet Size – 500×750mm design offers more installation possibilities, especially for projects requiring creative splicing or compact layouts.
Front & Rear Maintenance – Simplifies servicing by allowing modules, power supplies, and HUBs to be replaced from either side, ideal for narrow spaces.
Magnetic Adsorption Modules – Enables fast assembly and safe installation with stable magnetic connections.
Ultra-Slim & Lightweight – Wall-mounted thickness under 100mm ensures a clean, modern look while saving valuable space.
Creative Splicing Options – Supports 45° and 90° angle designs, enabling innovative display shapes for unique visual experiences.
High Performance – With a refresh rate up to 3840Hz, wide viewing angles (H160°/V140°), and excellent color accuracy, it delivers vibrant and smooth visuals for any setting.
From conferences and exhibitions to stages, studios, and smart city applications, the Gstar-II Series combines cutting-edge technology with practical design, making it a top choice for professional LED display solutions.
Gstar-II series Parameters:
| Parameter | P1.5 | P1.9 | P2.6 | P2.9 | P3.9 |
| Pixel Pitch (mm) | 1.5625 | 1.953 | 2.604 | 2.976 | 3.91 |
| Pixel Density (/m²) | 409,600 | 262,144 | 147,456 | 112,896 | 65,536 |
| LED Model | SMD1010 | SMD1515 | SMD1515 | SM2020 | SMD2020 |
| Brightness (cd/m²) | 1000 | ||||
| Scanning | 1/40 | 1/32 | 1/24 | 1/21 | 1/16 |
| Cabinet Size (mm) | 500*750*78mm/500*1000*78mm | ||||
| Module Size (mm) | 250×250 | ||||
| Cabinet Material | Die-casting Aluminum | ||||
| Cabinet Weight | 14kg | ||||
| Maintenance Method | Front Maintenance | ||||
| Max Power Consumption (/m²) | 450-550W | ||||
| Avg. Power Consumption (/m²) | 150-180W | ||||
| Refresh Rate | 3840 | ||||
| Grayscale Level | 13-16bit | ||||
| Viewing Angle | H160°, V140° | ||||
| Input Voltage | AC100~240V (50-60Hz) | ||||
| Operating Temperature | -20℃~+60℃ | ||||
