Full Video Full HD P3.91 Outdoor Rental Led Screen 500*500mm/500*1000mm Customizable
تفاصيل المنتج:
مكان المنشأ: | الصين |
اسم العلامة التجارية: | GCL |
إصدار الشهادات: | EMC/CE/ROHS/CCC/FCC/BIS |
رقم الموديل: | جيمارس PH1.953mm /2.5mm/2.604mm/2.976mm/3.91mm |
شروط الدفع والشحن:
الحد الأدنى لكمية: | <i>Min.</i> <b>دقيقة.</b> <i>order: 20</i> <b>الطلب: 20</b> |
---|---|
الأسعار: | قابل للتفاوض |
تفاصيل التغليف: | حجم العبوة الواحدة: 60X60X30 سم |
وقت التسليم: | 15-20days |
شروط الدفع: | L / C ، D / A ، D / P ، T / T |
القدرة على العرض: | 2000 مترا مربعا / مترا مربعا لكلّ شهر |
معلومات تفصيلية |
|||
التطبيق: | في الخارج وفي الداخل | البكسلات: | P1.56 \ 1.953 \ 2.6 \ 3.91mm |
---|---|---|---|
الاستخدام: | نشر الإعلانات ، متجر البيع بالتجزئة ، مركز التسوق ، عرض | السطوع: | تخصيص |
اللون: | اللون الكامل | الضمان: | سنتان |
إبراز: | Customizable Outdoor Rental Led Screen,P3.91 Outdoor Rental Led Screen,P3.91 Outdoor Rental Led Screen |
منتوج وصف
Full Video Full hd Led Screen P2.6 Outdoor Led Screen Rental with 500*500mm/500*1000mm Led Panels
product description:

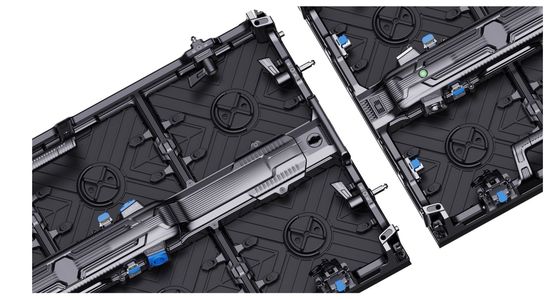

Fast Locks:
They are designed to be easily operated, allowing for quick installation and removal of the LED cabinet. Fast locks also ensure that the LED cabinet are tightly attached each other, preventing any potential damage or movement during usage.
Power and Signal Plug: LED rental screens require a reliable power and data supply to function properly. The empty cabinet is equipped with power and data connectors that allow seamless connection between LED cabinets and the control system. These connectors are designed to be durable and waterproof, ensuring a stable and uninterrupted power and data transmission.
Cabinet Interior Details:
Receiving Card: Through the signal transmission line receive the control signal and the whole screen image signal transmitted by the sending card, rely on their own coordinate setting information to select their own signal to display.
Power Supply: The power supply converts the electrical current from the main power source into the appropriate voltage and current required by the LED modules. It is usually located inside the cabinet and connected to the LED modules through wiring.
Gmars series (non-XR) for versatile production needs

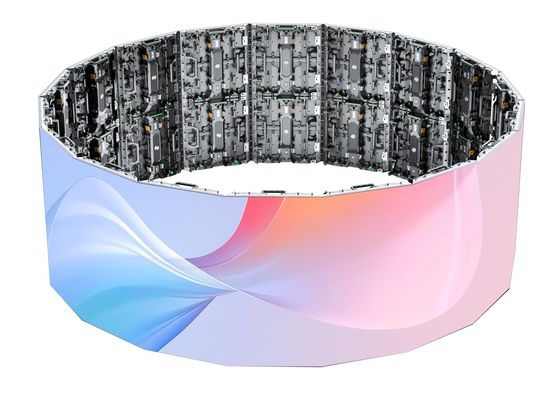

Preferred aluminum alloy box, has a beautiful appearance of lightweight, low power consumption characteristics; box structure with a quick lock, can be quickly installed; 500 * 500, 500 * 1000mm two kinds of boxes are free to collocation, optional right-angle locks and curved locks, modular design allows users to flexibly build a variety of shapes of the display to meet the diversity of the needs of the stage design to meet all kinds of ways to set up the event.

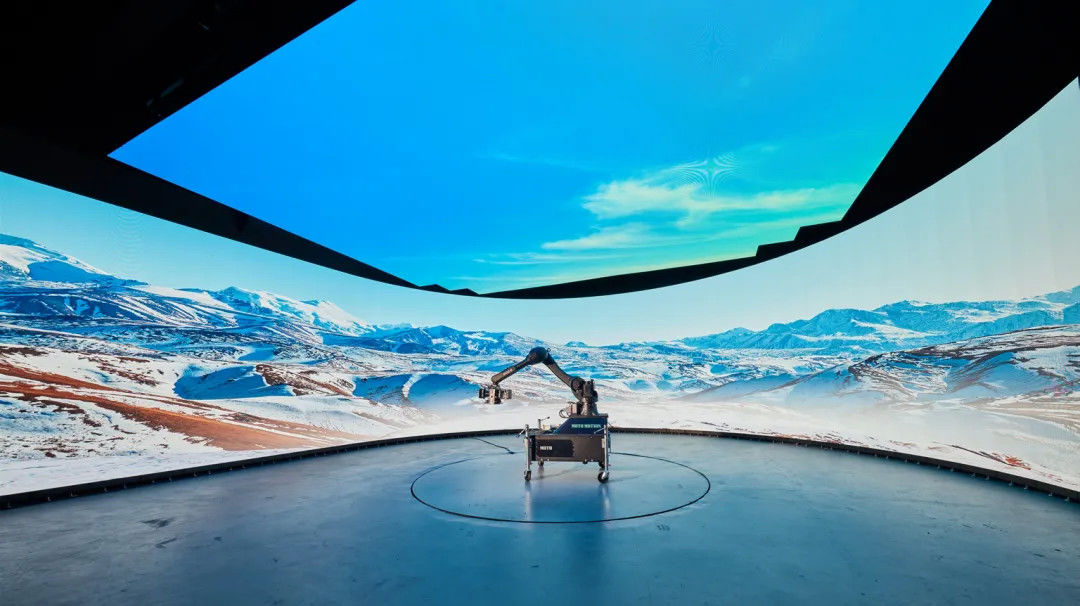

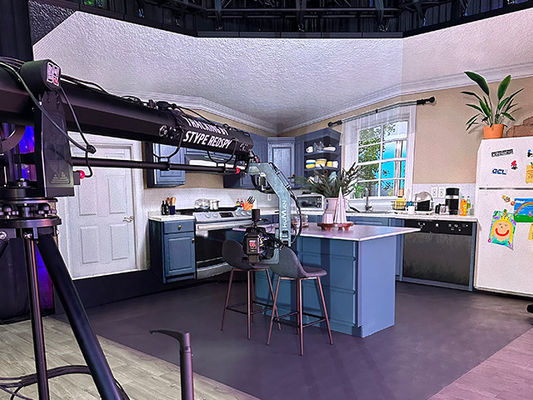

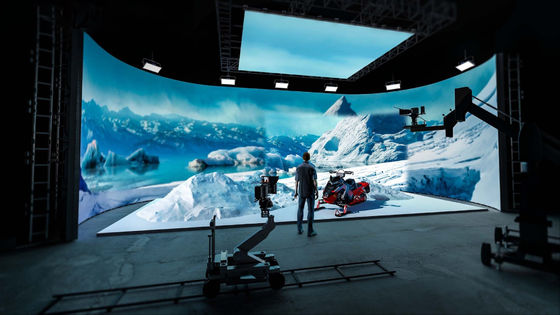

Virtual production screen: Indoor XR Gmars
The XR Gmars series is the main virtual shooting solution on display; the solution integrates real-time rendering technology and selects professional XR display with 7680Hz ultra-high refresh, 16bit+ grayscale, high brightness, high color reproduction to make the picture ultra-realistic, and at the same time, equipped with intelligent photographic tracking technology, it realizes the accurate capture of objects and characters in the real scene, making the virtual and the reality more fusion More realistic.
Parameters of Gmars XR Series:
classification | Indoor | Outdoor | |||||||
Product | P1.5 | P1.953 | P2.604 | P2.976 | P3.91 | P1.953 | P2.604 | P2.976 | P3.91 |
Pitch | 1.5625mm | 1.953mm | 2.604mm | 2.976mm | 3.91mm | 1.953mm | 2.604mm | 2.976mm | 3.91mm |
Density (pixels/m²) | 409600 | 262144 | 147456 | 112896 | 65536 | 262144 | 147456 | 112896 | 65536 |
LED Type | SMD1212 | SMD1212 | SMD1515 | SMD2020 | SMD2020 | SMD1415 | SMD1415 | SMD1415 | SMD1921 |
Brightness | 1200nits | 1200nits | 1200nits | 1200nits | 1000nits | 4500nits | 5000nits | 5000nits | 5500nits |
Panel Size | 500×500mm/500×1000mm both available) | ||||||||
Module Size | 250×250mm | ||||||||
Panel Material | Die-casting Aluminum | ||||||||
Panel Weight | 8kg | 8kg | |||||||
Protection Leve | IP31 | IP65 | |||||||
Maintenance | Module Front Service &Rear Service | ||||||||
Max Power Consumption | 450W/㎡ | 450W/㎡ | 450W/㎡ | 550W/㎡ | 550W/㎡ | 600W/㎡ | 600W/㎡ | 600W/㎡ | 600W/㎡ |
Average PowerConsumption | 150W/㎡ | 150W/㎡ | 150W/㎡ | 180W/㎡ | 180W/㎡ | 200W/㎡ | 200W/㎡ | 200W/㎡ | 200W/㎡ |
Refresh Rate | 3840Hz~7680Hz | ||||||||
GreyScale | 14-16bit | ||||||||
Viewing Angle | H160°,V140° | H140°,V140° | |||||||

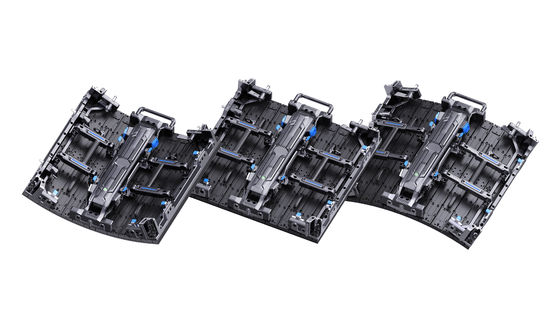

CurveDegrees(Optional) | -6°~+6° | ||||||||
Voltage | AC100~240V(50-60Hz) | ||||||||
Working Temperature | -30℃to 60℃ | ||||||||
Working Humidity | 10%-90%RH | ||||||||
Color Temperature | 3000-95000K | ||||||||
Certifications | CE/ROHS/EMC/TUV/UL/CCC/FCC/ISO |
