Gstar-II Series 500*750mm Indoor Rental LED Display Fixed Installation P1.5 P1.953mm Various Shapes
تفاصيل المنتج:
| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | GCL |
| إصدار الشهادات: | EMC/CE/ROHS/CCC/FCC/BIS |
| رقم الموديل: | GSTAR-II P1.56.P1.953/P2.5 |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | <i>Min.</i> <b>دقيقة.</b> <i>order: 20</i> <b>الطلب: 20</b> |
|---|---|
| الأسعار: | Price to be discussed |
| تفاصيل التغليف: | حجم العبوة الواحدة: 60X60X30 سم |
| وقت التسليم: | 15-20days |
| شروط الدفع: | L / C ، D / A ، D / P ، T / T |
| القدرة على العرض: | 5000 مترا مربعا / مترا مربعا شهريا |
|
معلومات تفصيلية |
|||
| اسم العلامة التجارية: | GCL | اسم المنتج: | سلسلة Gstar-II |
|---|---|---|---|
| استخدام: | تأجير داخلي | مقاس اللوحه: | 500x750x78 مللي متر/500x1000x78 مللي متر |
| حجم الوحدة: | 250 * 250 مم | زاوية الرؤية: | H140 درجة، V140 درجة |
| إصدار الشهادات: | EMC/CE/ROHS/CCC/FCC/BIS | متوسط استهلاك الطاقة: | 150-180 واط |
| ينعش: | 3840-7680 هرتز | الحزمة:: | بحار |
| المواد: | الألمنيوم المصبوب | وزن اللوحة: | 14 كجم |
| تصنيف الملكية الفكرية: | IP34 | ||
| إبراز: | 500*750mm Indoor Rental LED Display,Fixed Installation Indoor Rental LED Display,P1.5 Indoor Rental LED Display,Fixed Installation Indoor Rental LED Display,P1.5 Indoor Rental LED Display |
||
منتوج وصف

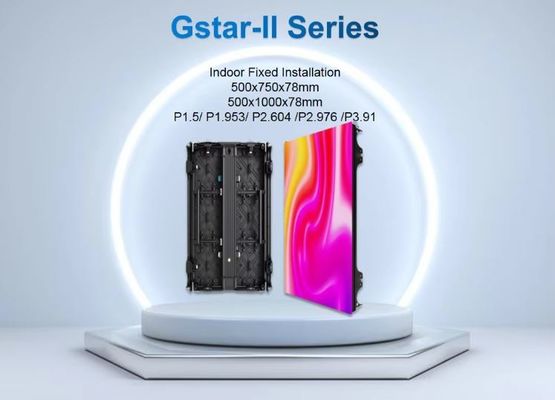

GCL LED Video Walls New Gstar II indoorP1.95 P2.6 P2.97 P3.91 P4.8 High-Definition Display Screen
Model Number:p1.56 P1.95 P2.6, P2.97, P3.91,

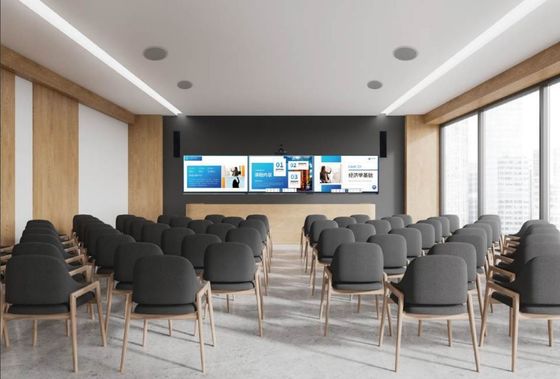

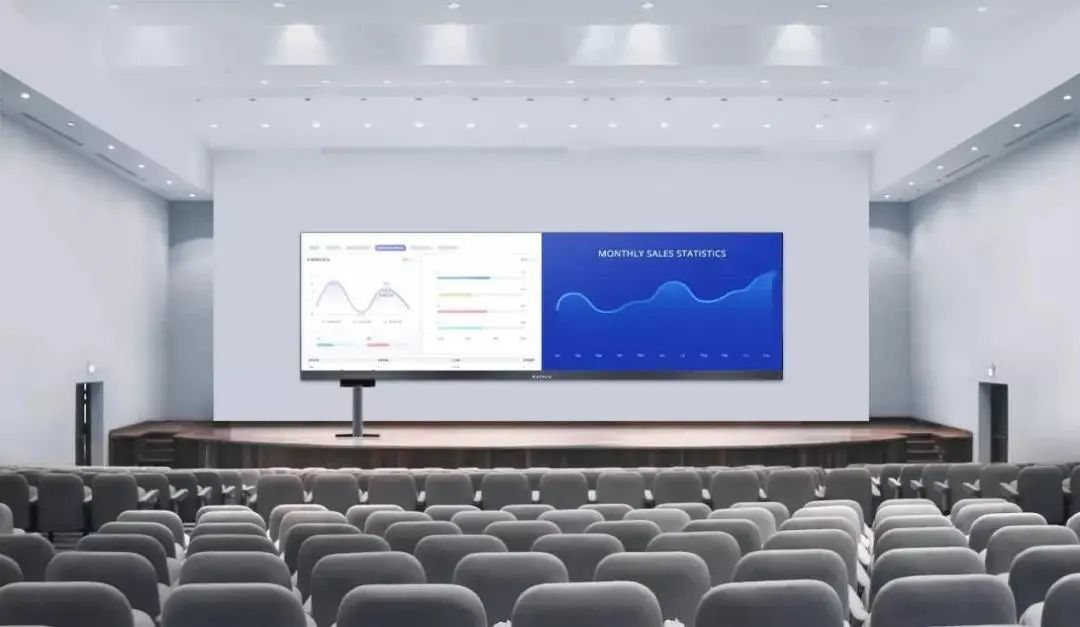

Gstar II products are indoor small pitch display screens installed on the wall, with P1.56 and P1.953mm as the main spacing. The first product box size is 750 * 500mm, which is convenient and flexible for building indoor large display background walls with heights of 1500mm, 2250mm, and 3000mm. Of course, it can also be used in conjunction with 1000 * 500mm products, which provides more options for building solutions! Convenient for building 2K and 4K display walls and conference screens; The product is easy to install and has a service life of over 100000 hours. It is the preferred LED display product for large conference rooms, studios, command centers, and technology exhibition halls;
Product specifications:
| Product | P1.5 | P2.604 | ||
| Pitch | 1.5625mm | 2.604mm | ||
| Density(pixels/㎡) | 409600 | 147456 | ||
| LED Type | SMD1212 | SMD2020 | ||
| Brightness | 800nits | 800nits | ||
| Scan Method | 1/32 | 1/24 | ||

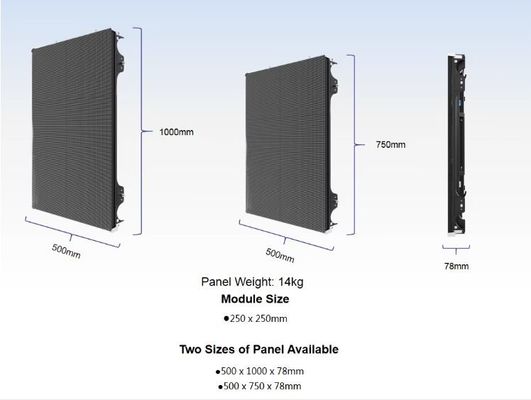

| Panel Size | 500x750x78mm / 500x1000x78mm | |||
| Module Size | 250x250mm | |||
| Panel Material | Die-casting Aluminum | |||
| Panel Weight | 14kg | |||
| Maintenance | Module Front Service & Rear Service | |||
| Max Power Consumption | 450W/㎡ | 550W/㎡ | ||
| Average Power Consumption | 150W/㎡ | 180W/㎡ | ||
| Refresh Rate | 3840Hz | |||
| Grey Scale | 13-16bit | |||
| ertifications | CE/ROHD/EMC/TUV/UL/CCC/FCC/ISO | |||
